K-.75 | For 3/4” Dia Roller – 85 Shore “A” Orange – Length 10 FT – Max. Temp 170F

$55.60

Max Temp 170F
85 Shore “A” Orange Polyurethane in 10 Foot Lengths

Fits Roller O.D.: 3/4″
Wall Thickness: 1/8″

Non-marking, rugged, “friction-fit” covering for standard conveyor rollers.  Enhances conveying by increasing friction, protecting conveyed products & conveyor components, reducing noise, and enhancing control.
*CORE SHOWN IN PHOTOS NOT SUPPLIED

NOTE: Contact us to have Kastalon install your Koat-A-Roll®.

Order installation tools and quantity of Koat-A-Roll below:

BD-3580-2 - 1 Pint 3580 2-Part Bond Adhesive | For Drive Roller Installation

Kit Size: 1 Pint / 2-Part Bonding Adhesive

For complete installation instructions, CLICK HERE
3580 Bond is an industrial strength two-part bond that allows for permanent adhesion of the sleeve to the roller.

*This installation product is only available with a combined purchase of a Koat-A-Roll® and Vinyl-Koat® roller sleeves.

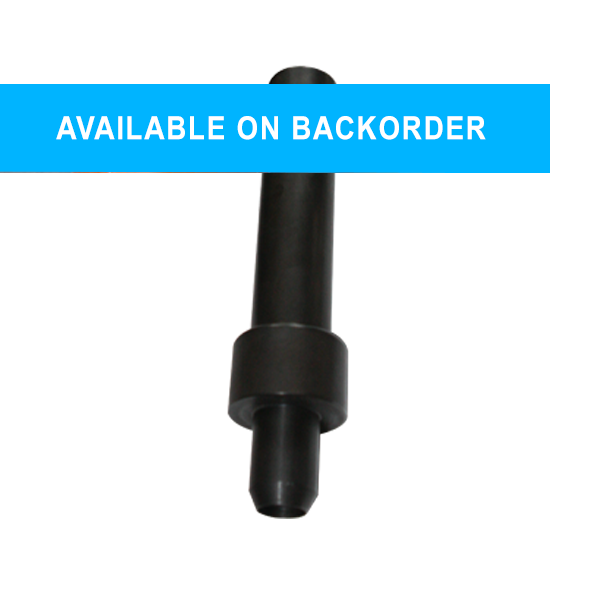

K-.75-NZ – Installation Assembly Nozzle with Handle

Koat-A-Roll® Assembly Nozzle with Handle
Using compressed air, this uniquely designed nozzle assists the installation of sleeves to the roller. The universal handle fits all size nozzles.

*This installation product is only available with a combined purchase of a Koat-A-Roll® and Vinyl-Koat® roller sleeves.

K-LB-2 - K-Lube® Assembly Lubricant 1 Quart | For Idler Roller Installation

1 Quart / Spray Bottle

For complete installation instructions, CLICK HERE
K-Lube simplifies installation of sleeves by providing a specially formulated temporary lubricant used to coat the roller prior to blowing on all sleeve materials.

*This installation product is only available with a combined purchase of a Koat-A-Roll® and Vinyl-Koat® roller sleeves.

Description

Koat-A-Roll® Conveyor Roller Sleeves
Koat-A-Roll® is a revolutionary non-marking, rugged, friction-fit covering for standard conveyor rollers. In addition to damage reduction, the high friction surface provides for more secure conveying. This allows powered conveying at steeper angles and greater elevations, offering a practical alternative to belt or vertical systems. Resilient and cushioning, Koat-A-Roll® converts standard parts into premium components.

Standard sizes range from 3/4″ to 4″ diameter rollers, in 1/8″ wall (also 1/16″ and 1/4″ wall for select sizes) and several colors.

NOTE: Contact us to have Kastalon install your Koat-A-Roll®. Volume and reseller discounts available, contact us for more info.

Additional information

Weight 5 lbs
Dimensions 63 × 7 × 7 in
Part #: K-.75

Fits Roller O.D.: 3/4″
Wall Thickness: 1/8″
Length: 10 feet
Temp: Max Temp 170F
Hardness: 85 Shore “A”
Color: Orange

Installation Instructions

For complete installation instructions, visit https://www.kastalon.com/literature-downloads/

Physical and Mechanical Properties

View our physical and mechanical properties:
https://www.kastalon.com/koat-a-roll-products/koat-a-roll/properties/
